Geberit Duofix 1120mm WC Frame UP320 12cm Cistern 111.383.00.5
111.383.00.5
___

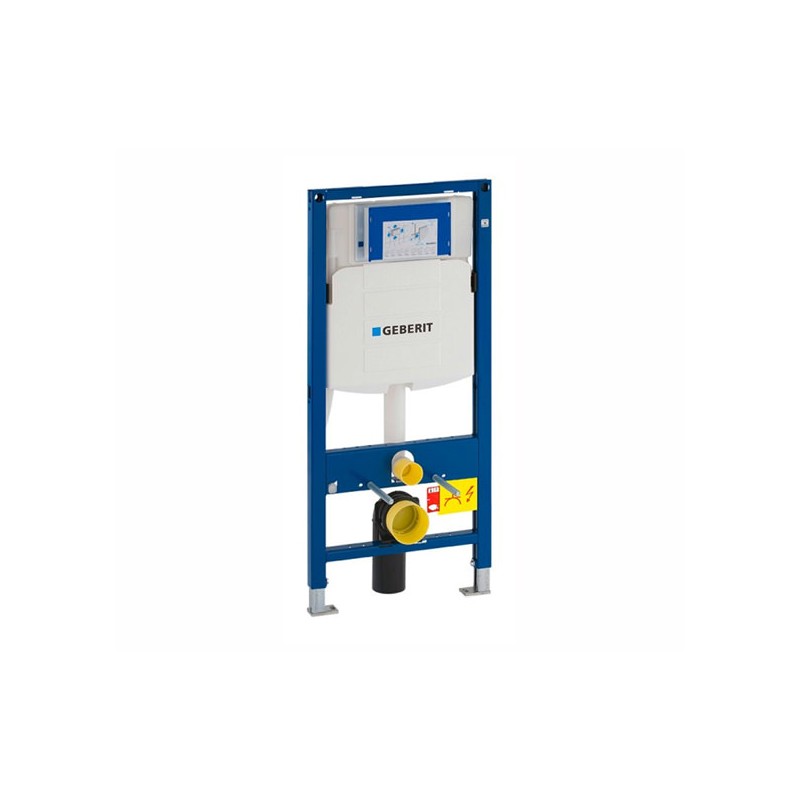

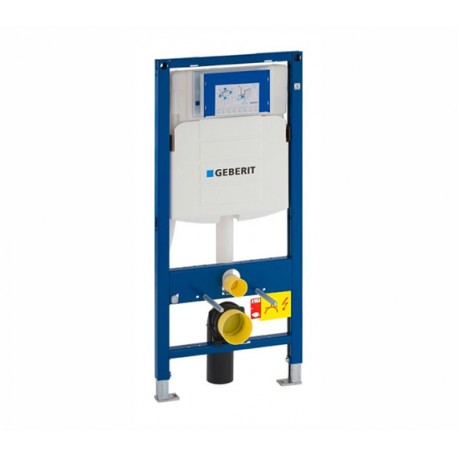

Geberit Duofix 1120mm WC Frame UP320 12cm Cistern 111.383.00.5
Flush plate not included - needs to be order separately see Flush Plate section or Click Here to view.
The classic in modern bathroom installations
Geberit concealed cisterns are the classic of modern bathroom installations and have been installed a million times over around the world for more than 40 years. So you can count on their well-known reliability. We perform a leak test on every cistern before delivering it. And because we guarantee the availability of spare parts for 25 years, you have the long-term security that your plumber will keep the technology operable for the long term. With the dual flush as well as adjustable flush volumes, we have "taught" the flushing mechanisms to save water.
Prepared for the future of the bathroom

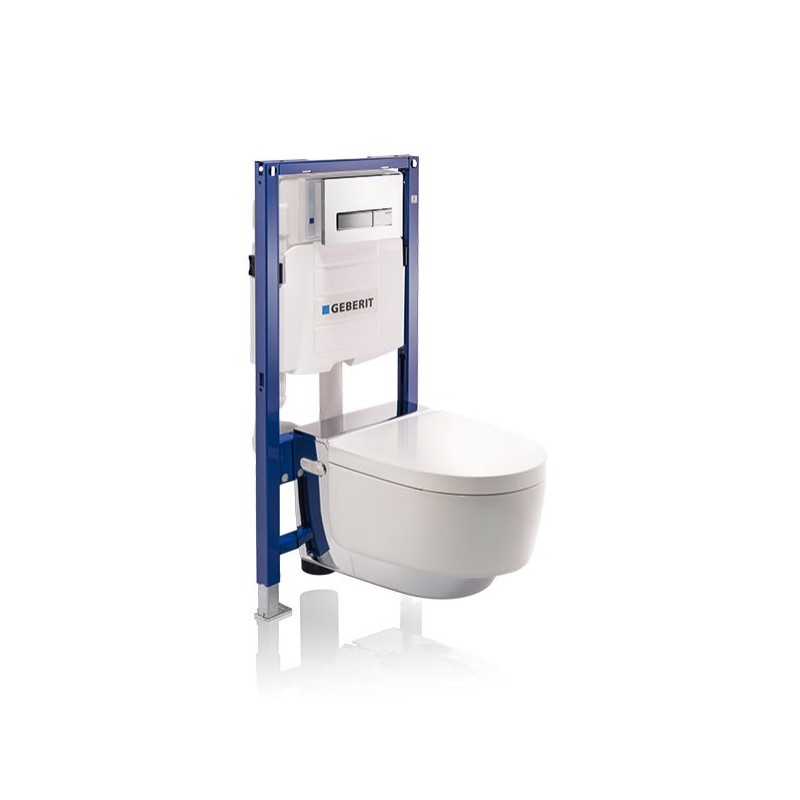

The frames for WCs include a conduit pipe for the water supply connection of Geberit AquaClean devices. With this pipe, your plumber can retrofit a Geberit AquaClean, the WC that cleans you with water, at any time. Some frames for WCs are additionally equipped for the Geberit DuoFresh odour extraction unit, which absorbs and eliminates odours directly from the WC ceramic
- Write a review
More info
- Finish : Ultramarine blue, powder-coated
- Comes with Sigma concealed cistern 12cm (UP320)
- Suitable for installation of a wall-hung WC with bolt fixings set at 180 or 230mm centres
- For installation in a room-height Duofix system wall in front of a solid or drywall construction
- For mounting in front of a solid or drywall construction.

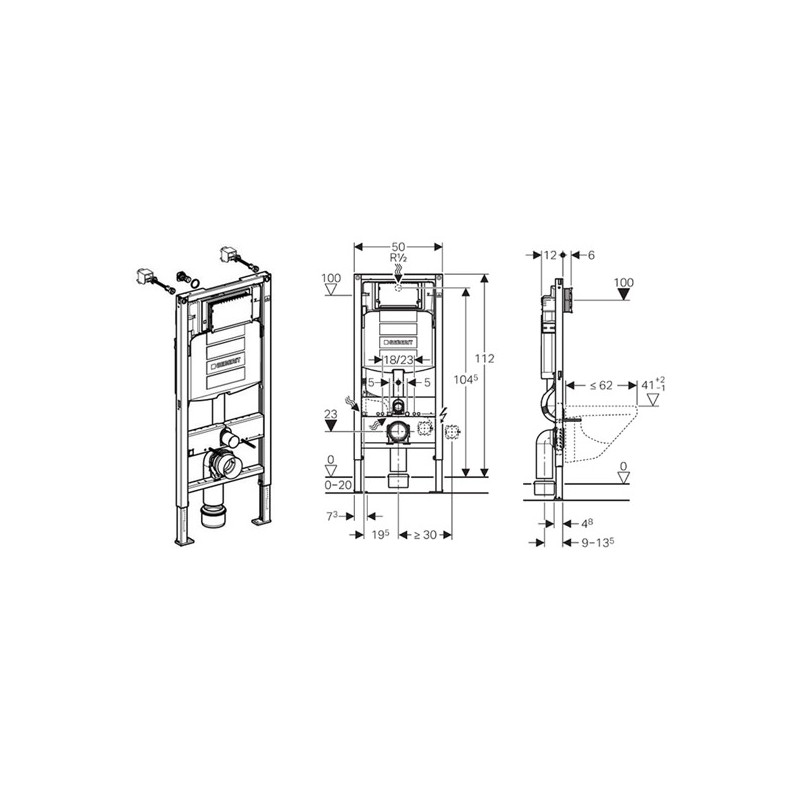

- Dimensions : 500 x 1120mm (width x height)
- Manufacturing code of this product is 111.383.00.5
- Installation manual provided, please Download PDF from technical tab
- For a screed of 0 - 200mm (not in room height applications)
- For connecting AquaClean
- Self-supporting
- Comes with C profile 40/40 mm
- Galvanised leg supports, steplessly adjustable 0 - 200 mm
- Feet can be retracted 5 cm
- Rotating foot plate, for installation in UW50 and UW75 profiles
- Drilled with 9mm diameter holes for fastening in wood construction
- Sound-absorbing actuator rods, tool-free, fast adjustment
- Easy to clean coating on glass and metal
- Concealed cistern fully insulated against condensation
- Concealed cistern for tool-free mounting and maintenance
- Height : 1120mm
- Supplied with wall brackets to allow up to a 200mm duct
- For larger ducts up to 400mm use extension bolts - 111.887.00.1
- Tool-free fastening for outlet bend, sound-absorbing, adjustable in depth with 8 positions, adjustable range 45 mm
- Connection hose to angle stop valve can be screwed without tools
- Water supply connection at centre back or at the top
- Sigma concealed cistern 12cm (UP320) with front actuation
- Suitable for use with Sigma80 touchless, Sigma60, Sigma50, Sigma20, Sigma10 touchless, Sigma01 or Bolero flush plates
- Compatible with Sigma10 or Tango flush plates
- Dual flush with pneumatic and mechanical buttons
- Single flush with touchless or pneumatic buttons
- The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length
- Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
- Self-locking feet for tool-free alignment, (friction feet have to be locked with spanner)
- For pans with contact surfaces smaller than 170mm - accessory required (111.847.00.1)
- Valve features settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1)
- Note: must be used with pans designed for low volume
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- Technical details :
- Flow pressure range - 0.1 to 10 bar
- Operating temperature water maximum 25 °C
- Volume small range 3-4 litre
- Volume factory setting 5.8 and 3 litre
- Parts included :
- 2 x Duofix PreWall brackets for system
- Water supply connection R 1/2" male BSP parallel thread with integrated angle stop valve and hand wheel
- Conduit pipe for the water supply connection of Geberit AquaClean
- Protection plug
- Protection housing for service opening
- 2 threaded rods M12 for ceramics fastening
- WC connection set, ø 90 mm
- WC outlet bend, HDPE, ø 90 mm
- Adaptor sleeve, HDPE, ø 90/110 mm
- Fastening material
- Flush plate not included - need to be order separately.
