Geberit Sigma Concealed Cistern 12cm UP320 - Geberit Sigma Concealed Cistern 12cm UP320 - 109.309.00.5
109.309.00.5
___

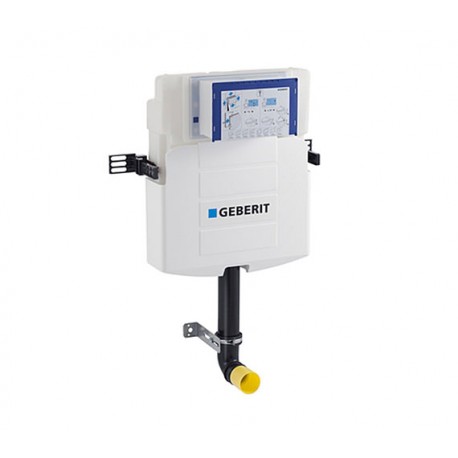

Geberit Sigma Concealed Cistern 12cm UP320 - 109.309.00.5
Flush plate not included - needs to be order separately see Flush Plate section or Click Here to view.
The classic in modern bathroom installations
Geberit concealed cisterns are the classic of modern bathroom installations and have been installed a million times over around the world for more than 40 years. So you can count on their well-known reliability. We perform a leak test on every cistern before delivering it. And because we guarantee the availability of spare parts for 25 years, you have the long-term security that your plumber will keep the technology operable for the long term. With the dual flush as well as adjustable flush volumes, we have "taught" the flushing mechanisms to save water.
Prepared for the future of the bathroom
The frames for WCs include a conduit pipe for the water supply connection of Geberit AquaClean devices. With this pipe, your plumber can retrofit a Geberit AquaClean, the WC that cleans you with water, at any time. Some frames for WCs are additionally equipped for the Geberit DuoFresh odour extraction unit, which absorbs and eliminates odours directly from the WC ceramic
- Write a review
More info
- Cistern with front actuation only
- Suitable for concealed installation
- Fully insulated against condensation
- Protection cover for service opening can be mounted without tools and cut to length
- Suitable for dual flush with Sigma80 touchless, Sigma60, Sigma50, Sigma20, Sigma10 touchless, Sigma01 or Bolero flush plates and single flush with Sigma10 or Tango flush plates
- Dual flush with pneumatic and mechanical buttons and single flush with touchless flush or pneumatic buttons
- Parts Included: Water supply connection R 1/2" with integrated angle stop valve, Flush pipe ø 45 mm, Fastening for flush bend, Protection plug for flush pipe, 2 slotted flat irons, 2 fastening brackets, pre-mounted, Fastening material
- Technical Details: Flow pressure range: 0.1-10 bar, Maximum operating temperature of water: 25 °C
- Can be reversed to give access from behind in a duct situation when flushed with HyTouch pneumatic buttons or touchless flush
- Flush valve features 6l and 4.5l flush settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1)
- Can be worked with used water (rainwater) provided it is passed through a filter system first
- Adjustable flushing volume
- Water supply connection at centre back or at the top
- Flush volume small range: 3-4 l and Flush volume factory setting: 5.8 and 3 1
- Flush bend has maximum 8cm adjustment. Flush can be cut down by maximum of 8cm

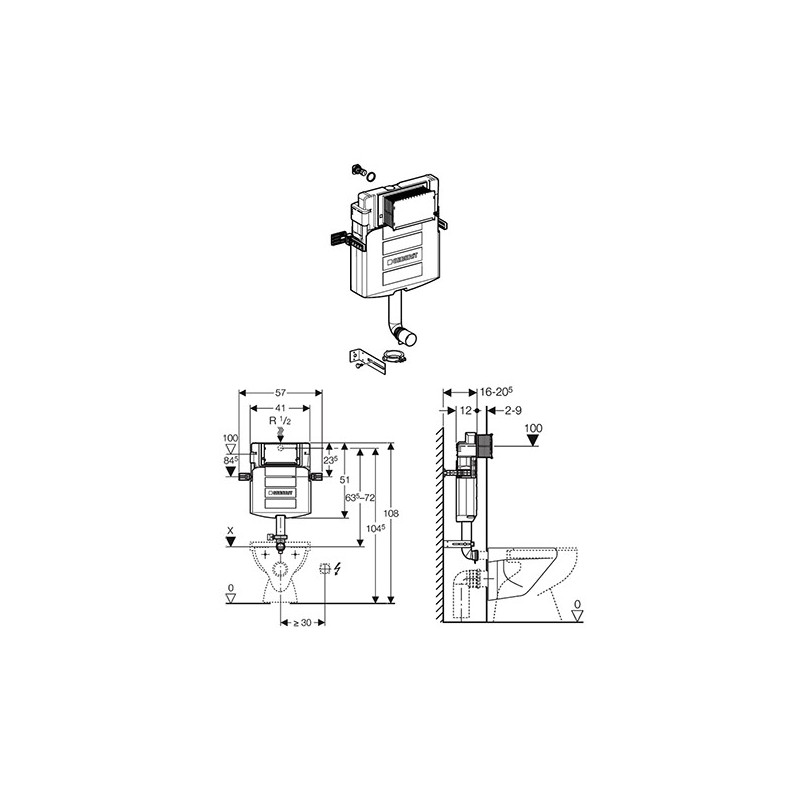

- Installation height 1080mm (can be cut down, depending on the WC pan performance)
- Minimum install height 950mm and Installation depth adjustable, 160 - 205 mm
- Note: Should be used with WC pans designed for low volume flush
- Fastening bracket adjustable in depth
- For installation instruction, download PDF from technical tab
- Suitable for back to wall floor standing WCs.
