> >>>>Geberit Kappa 150mm Concealed Cistern - 109.205.00.1
Geberit Kappa 150mm Concealed Cistern - 109.205.00.1 View larger

Geberit Kappa 150mm Concealed Cistern - 109.205.00.1

109.205.00.1

___

Geberit Kappa 150mm Concealed Cistern - 109.205.00.1

FOR USE WITH BACK TO WALL WCs

Flush plate not included - needs to be order separately see Flush Plate section or Click Here to view.

The classic in modern bathroom installations
Geberit concealed cisterns are the classic of modern bathroom installations and have been installed a million times over around the world for more than 40 years. So you can count on their well-known reliability. We perform a leak test on every cistern before delivering it. And because we guarantee the availability of spare parts for 25 years, you have the long-term security that your plumber will keep the technology operable for the long term. With the dual flush as well as adjustable flush volumes, we have "taught" the flushing mechanisms to save water.

Prepared for the future of the bathroom
The frames for WCs include a conduit pipe for the water supply connection of Geberit AquaClean devices. With this pipe, your plumber can retrofit a Geberit AquaClean, the WC that cleans you with water, at any time. Some frames for WCs are additionally equipped for the Geberit DuoFresh odour extraction unit, which absorbs and eliminates odours directly from the WC ceramic

More details

£ 150.00 including vat

More info

  • Best suitable for concealed installation
  • Compatible with back to wall floor standing WC
  • Manufacturing part number : 109.205.00.1
  • Features front actuation
  • Adjustable depth : 180 to 245mm
  • Required Installation height : 820 mm
  • Comes fully insulated against condensation
  • Inlet at left side for water supply connection
  • Connection hose to angle stop valve can be screwed without tools
  • Welded Flush bend
  • Fast adjustment of the actuator rods for flush plate
  • Protection housing for service opening, can be cut to length

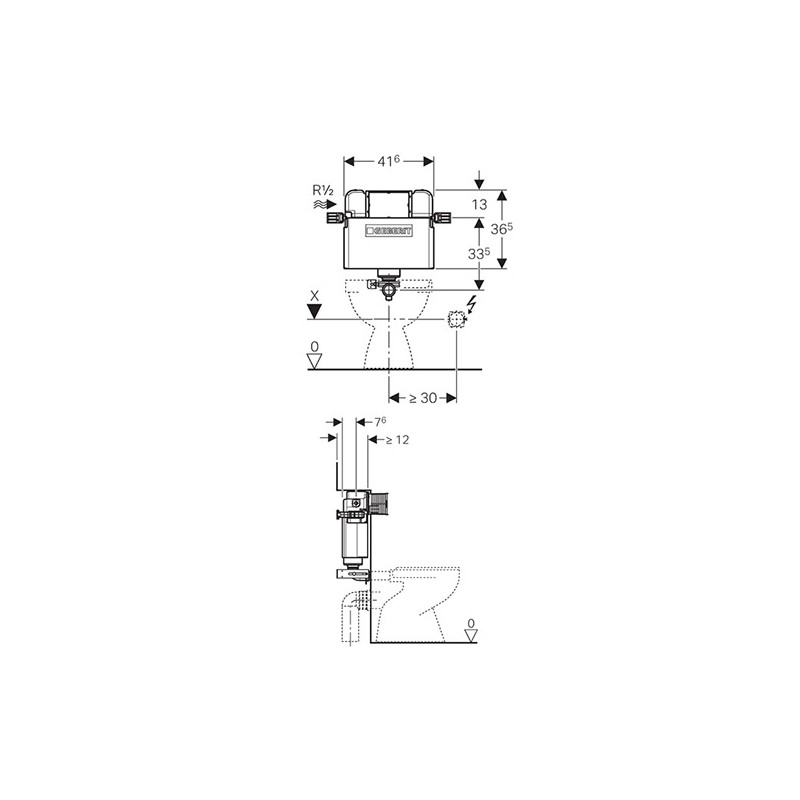

  • For detailed technical dimensions refer technical image
  • Can be use with :
  • Dual flush with Kappa flush plates
  • Dual flush with pneumatic and mechanical buttons
  • Single flush with pneumatic buttons Technical Details :
  • Range of Flow pressure : 0.1 to 10 bar
  • Maximum Operating temperature for water : 25 °C
  • Flush volume factory setting : 5.8 and 3 liter
  • Flush volume small range : 2.6 to 4 liter Supplied Complete With :
  • Water supply connection of R 1/2 inch, compatible with MeplaFix
  • Integrated angle stop valve and hand wheel
  • Protection housing for service opening
  • Protection plug for flush bend
  • 2 x Pre-mounted fastening brackets
  • Fastening material.
